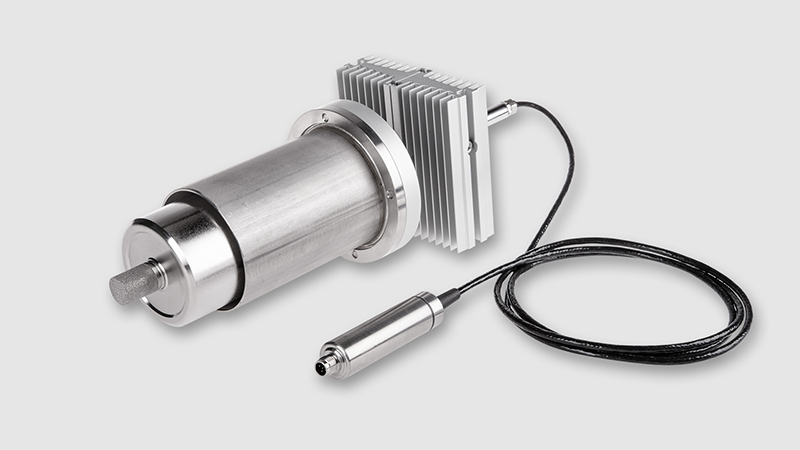

Baking Oven Monitoring In many baking and drying processes, the right conditions provide a competitive advantage to manufacturers. Applications such as bread baking and cereal manufacturing, for example, must have a carefully controlled humidity level in the dryers and ovens in order to keep quality and yield high and to give distinctive characteristics to the finished product. Application Note: Special requirements for bakery applications In many baking and drying processes with high temperatures, the right conditions decide between first-class and low-quality food. A combination of high temperature (up to 350 ° C) and high humidity presents measuring instruments with particular challenges. Very few devices can withstand these conditions.The Vaisala DRYCAP® Dewpoint and Temperature Probe DMP6 meets these requirements. When configured to customer specifications, it can be used safely in temperatures up to 350 °C. Moisture control ensures high-quality crackers One example of a food production process where the right moisture level in the ambient air is essential is in cracker production. The crackers are dried in three different phases in which the temperature varies from 150 to 300 °C (302 … 572 °F) and the humidity goes from high to low. If the ambient air has too much moisture in it, the crackers retain a high level of free moisture and will not crackle, as they should. The high water content also means the crackers spoil more easily, and the production yield stays low. On the other hand, if the air is too dry, the surface of the crackers can dry too quickly and trap the free moisture within – or the product can become too dry and brittle. Drying the product too much also wastes heating power. In both cases the color and flavor of the crackers suffer and the product yield is poor. Similar effects take place in bread and biscuit baking and in cereal and snack manufacture. Even in processes like roasting, the ambient moisture level changes the end product. The DMP6 keeps cool at 350 °CThe Vaisala DRYCAP® Dewpoint is specially designed for applications where both high temperatures and high humidities occur, and the cooling set is a standard feature. The sensor can be placed directly in high temperatures without sacrificing measurement accuracy or stability. The DMP6 has a unique autocalibration function that performs calibration and adjustment by itself while the measured process is running. All corrections, if any, are also run automatically, which allows your operations to run without disruptions. Learn more Measurement of relative humidity and dew point Many high-temperature baking and drying processes require stable, reliable, and accurate measuring devices for moisture measurement, which are at the same time easy to use and flexibly determinable.For example, drying of demineralized whey can be optimized with Vaisala humidity and temperature transmitters, which measure the humidity and temperature of the dryer supply and exhaust air. The humidity data of the supply air is used to control the process, while the humidity data of the exhaust air shows the amount of moisture in the powder, which indicates the quality of the final product. Avoiding over-drying saves time and energy. TRANSMITTERS FOR THE FOOD AND BEVERAGE INDUSTRY Baking oven monitoring related products Dew Point and Temperature Probe DMP5 Vaisala DRYCAP® Dew Point and Temperature Probe DMP5 is designed for in-line humidity measurement in industrial drying applications with high temperatures and a wide dew point range. Read more Dew Point Probe DMP6 Vaisala DRYCAP® Dew Point and Temperature Probe DMP6 is designed for in-line humidity measurement in industrial drying applications with very high temperatures and a wide dew point range. Read more viewLinc Continuous Monitoring System (CMS) Continuous Monitoring System for Controlled Environments and GxP Applications: Monitor Temperature, Humidity & Universal Input data loggers. Read more Handheld Dewpoint Meter DM70 Handheld Dewpoint Meter DM70 for spot-checking applications and field calibration offers accurate and fast measurement for industrial dew point applications, such as compressed air, metal treatment, additive manufacturing as well as food and plastics drying. Read more Handheld Humidity and Temperature Meter HM70 Vaisala HUMICAP® HM70 Handheld is designed for demanding humidity measurement in spot-checking applications. It is also ideal for field checking and calibration of Vaisala's fixed humidity instruments. Read more Handheld CO₂ Meter GM70 The Vaisala CARBOCAP ® Hand-held Carbon Dioxide Meter GM70 measures volume concentration of CO 2 in the units of ppm or %. Read more Indigo200 Series Transmitters for Vaisala smart probes Vaisala Indigo200 series transmitters are host devices for displaying measurement values from Vaisala's Smart Humidity, Temperature, Dew Point, Moisture in Oil, CO 2 and H 2 O 2 Probes. Read more Indigo500 Series Transmitters The Vaisala Indigo500 series transmitters are host devices for Vaisala Indigo-compatible, stand-alone smart probes. The Indigo500 series include multi-functional Indigo520 transmitter and Indigo510 transmitter with basic features. Read more Miniature Dew Point Transmitters DMT143 & DMT143L (Long) Miniature size dew point transmitters DMT143 and DMT143L are ideal choices when you want to measure dew point accurately in small compressed air dryers, plastic dryers, additive manufacturing and other OEM applications. Read more Dew Point and Temperature Meter Series DMT340 Note that the DMT340 series is being discontinued. Condensation-resistant DMT340 is designed for industrial low-humidity applications Read more Dew Point Transmitters DMT345 and DMT346 Note that the DMT340 series is being discontinued. The Vaisala DRYCAP® Dewpoint Transmitters DMT345 and DMT346 are designed for humidity measurement in industrial drying applications with particularly high temperatures. Read more Humidity and Temperature Transmitters HMT120/130 The Vaisala HUMICAP® HMT120 and HMT130 transmitters are suitable for cleanrooms, museums, laboratories and data centers. Read more Humidity Module HMM100 The Vaisala HUMICAP® Humidity Module HMM100 is an open frame module for integration into environmental chambers. The modules provide a single analog output channel for relative humidity (RH) or dew point (Td). Read more Relative Humidity and Temperature Probe HMP5 Vaisala HUMICAP® Humidity and Temperature Probe HMP5 is designed for high temperature applications such as baking ovens, pasta dryers, ceramics and industrial drying kilns where measurement performance and chemical tolerance are essential. Read more Contact us Further reading Customer case How accurate humidity measurement is helping Bühler’s customers bake more efficiently and consistently To ensure accurate real-time measurement of humidity levels in their Meincke Turbu ovens, Bühler employs the highly accurate and versatile Vaisala DRYCAP® Dew Point and Temperature Probe DMP6 along with Indigo500 series transmitters. Learn more Blog The best thing since sliced bread – how humidity measurements increase baking efficiency To get the perfect loaf of bread you need to ensure you’re baking at the correct temperature with the right level of humidity. To do this requires stable, reliable, and accurate measurement instruments that can help ensure optimal product quality and consistency even at very high temperatures. Learn more Blog Benefits of digital Modbus communication compared to analog signal transmission Although analog probes and data collection technology have a lot to offer, they also present several risks. Modbus is a digital communication protocol that overcomes many of these issues. Learn more Blog Ensuring accurate humidity measurement in industrial processes Humidity measurement is a key part of many industrial processes. With potentially hundreds or even thousands of measurement points needed, ensuring stable, precise, and reliable measurement is extremely important. Learn more Blog Do I need an Indigo transmitter or just an Indigo probe? There are many probe options to choose from measuring several parameters: humidity, temperature, dew point, CO2, moisture in oil, and vaporized hydrogen peroxide. The probes can be attached to Indigo500 or Indigo200 series transmitter. When is a probe sufficient on its own – and when do you need both a probe and a transmitter? Read more Blog Built to survive, even outside: the Vaisala Indigo500 Series Some of our customers have applications that require measurement transmitters to be installed outside, so the Vaisala Indigo500 and its family of smart probes have been designed to be durable enough for these kinds of rough, tough conditions. Learn more Blog Indigo500 series dual-probe support Learn about the benefits of using two probes measuring either the same parameter or two different ones. Read more Blog Optimizing industrial processes helps mitigate climate change Vaisala’s Industrial Measurements business area provides industrial customers with better visibility into their processes. Adjusting processes or conditions helps not only in terms of productivity but also to conserve energy and natural resources, which has a major impact in fighting climate change. Learn more Blog Give Your Climate Chamber a Boost The climate chamber being used for testing must be capable of accurately replicating the required extreme climate conditions. Learn more Blog Relative Humidity – What Is It And Why Is It Important? By far the biggest reason to monitor relative humidity is to control moisture around a final product. In most cases this means making sure that the RH never rises too high. Learn more
